Explain how power is supplied to large buildings such as blocks of flats
Power is supplied to large buildings like blocks of flats through a complex system that ensures safe and efficient distribution. Here’s a simplified breakdown:
- Main Supply:
- High Voltage: Electricity is initially transmitted from power plants at high voltages (e.g., 13,800 volts) to reduce energy loss during transmission.
- Substation: This high voltage is then stepped down to a lower voltage (e.g., 480/277 volts) at a substation near the building.
- Building Intake:
- Transformer: A transformer within the building further reduces the voltage to a safe level for indoor use (e.g., 120/240 volts).
- Switchgear: This equipment distributes the power to different parts of the building, controlling the flow and protecting against faults.
- Distribution:
- Vertical Distribution: Rising mains, which are vertical conduits containing electrical cables, carry power to different floors.
- Horizontal Distribution: On each floor, distribution boards further divide the power, supplying it to individual outlets, lighting fixtures, and appliances.
- Individual Units:
- Meter: Each unit in the building has its own meter to measure electricity consumption.
- Circuit Breakers: These protect individual circuits from overloading and short circuits.
Key Considerations: - Safety: Proper grounding and earthing are essential to prevent electrical shocks.
- Efficiency: Well-designed systems minimize energy loss and optimize power usage.
- Reliability: Redundancy in components can ensure continuous power supply.
- Flexibility: The system should be adaptable to future changes and increased demand.
Additional Notes: - Large buildings may have multiple transformers and switchgear to handle higher power loads.
- Fire safety systems, elevators, and other critical equipment often have dedicated power supplies.
- Regular maintenance and inspections are crucial to ensure the system’s reliability and safety.
By following these principles, large buildings can efficiently and safely distribute power to their occupants.
Explain the following:
a. Main switch gear (lower block)
b. Busbar chamber, and
c. Rising mains
a. Main Switch Gear (Lower Block)
A Main Switch Gear (MSW) is a crucial component of an electrical distribution system, especially in large buildings like blocks of flats. It’s essentially a centralized assembly of switches, fuses, and circuit breakers designed to control, protect, and isolate electrical circuits. The “lower block” typically refers to the low-voltage side of the MSW, which handles the distribution of power within the building.
Key functions of a Main Switch Gear (Lower Block):
- Power Distribution: It distributes incoming power to various parts of the building, such as individual apartments, common areas, and utility systems.
- Protection: It safeguards the electrical system by detecting and interrupting faults like short circuits and overloads.
- Control: It allows for the switching and isolation of circuits for maintenance, repair, or emergency situations.
b. Busbar Chamber
A busbar chamber is an enclosed compartment within the MSW that houses the busbars. Busbars are conductive bars or tubes that carry large electrical currents. They are typically made of copper or aluminum and are arranged in a specific configuration to facilitate the distribution of power.
Key functions of a Busbar Chamber: - Power Transmission: It efficiently transmits high currents from the incoming supply to various outgoing circuits.
- Flexibility: It allows for easy connection and disconnection of circuits, providing flexibility in power distribution.
- Safety: It encloses the live busbars, reducing the risk of electrical shock and ensuring safe operation.
c. Rising Mains
Rising mains are vertical conduits or shafts that carry electrical cables from the lower floors to the upper floors of a building. They are essential for distributing power throughout the building’s vertical extent.
Key functions of Rising Mains: - Power Distribution: They transport power from the main distribution panel to distribution panels on each floor.
- Safety: They protect the cables from physical damage and environmental factors.
- Organization: They provide a structured and organized way to route cables, improving maintenance and troubleshooting.
By understanding these components, you can appreciate the complexity of electrical distribution systems in large buildings and the importance of proper design and maintenance for ensuring reliable and safe power supply.

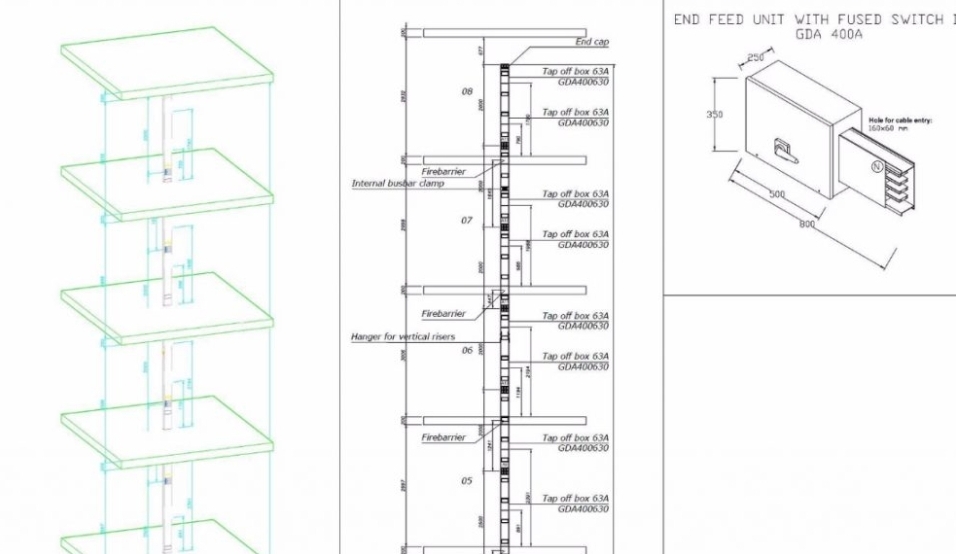

Draft rising main busbar system diagram serving high rise flats and explain it
Rising Main Busbar System Diagram for High-Rise Flats
Explanation:
A rising main busbar system is a common method for distributing power vertically in high-rise buildings. It consists of a vertical busbar that runs from the main switchgear in the basement or ground floor to distribution panels on each floor. This system offers several advantages, including:
- Efficiency: It minimizes voltage drop and reduces energy losses compared to cable-based systems.
- Flexibility: It allows for easy expansion and modification of the electrical distribution system.
- Reliability: It provides a robust and reliable power supply, even under heavy loads.
Key Components: - Main Switchgear: The central point of power distribution, typically located in the basement or ground floor.
- Rising Main Busbar: A vertical conductor, often enclosed in a trunking system, that carries power to each floor.
- Floor Distribution Panels: Located on each floor, these panels distribute power to individual outlets and circuits.
- Tap-Off Units: Devices that connect the rising main busbar to the floor distribution panels.
How it works: - Power Supply: Power enters the building at the main switchgear, where it is transformed to a suitable voltage level.
- Vertical Distribution: The rising main busbar carries the power vertically through the building, typically within a fire-rated enclosure.
- Floor Distribution: At each floor, tap-off units connect the rising main busbar to the floor distribution panel.
- Horizontal Distribution: The floor distribution panel distributes power to various outlets and circuits within the floor.
Advantages of Busbar Systems: - Reduced Installation Time: Busbar systems are typically faster to install compared to cable-based systems.
- Improved Safety: The enclosed design of busbar systems reduces the risk of electrical shock and fire hazards.
- Enhanced Aesthetics: Busbar systems can be installed in a more aesthetically pleasing manner than cable trays.
Important Considerations: - Fire Rating: The busbar trunking system should be fire-rated to ensure safety in case of fire.
- Load Calculations: Proper load calculations are essential to ensure the busbar system can handle the required current.
- Maintenance: Regular inspection and maintenance are crucial to maintain the reliability and safety of the system.
By understanding the components and benefits of rising main busbar systems, you can appreciate how they contribute to the efficient and reliable power distribution in high-rise buildings.
Explain the use of bare conductor rising mains
Use of Bare Conductor Rising Mains
While not commonly used in residential and commercial buildings, bare conductor rising mains have specific applications in certain industrial and power plant settings. Here’s a breakdown of their use cases and considerations:
Advantages:
- Cost-Effective: Bare conductors are generally less expensive than insulated conductors, especially for large-scale installations.
- Higher Current Capacity: They can handle higher current loads due to their superior heat dissipation properties.
Disadvantages: - Safety Concerns: Bare conductors pose a significant risk of electric shock, especially in environments with high humidity or where people may have access.
- Installation Complexity: They require careful installation and maintenance to prevent accidental contact and ensure safety.
- Limited Flexibility: They are less flexible than insulated conductors and may be more difficult to modify or expand.
Applications: - Power Plants: In power plants, bare conductors are often used in high-voltage switchgear and busbar systems due to their high current-carrying capacity and lower cost.
- Industrial Facilities: Certain industrial facilities, such as steel mills or chemical plants, may use bare conductors in specific areas where the risk of electrical shock is mitigated by safety measures.
Key Considerations: - Safety: When using bare conductors, strict safety protocols must be in place to prevent accidents. This includes proper installation, maintenance, and regular inspections.
- Environmental Factors: The environment where bare conductors are used should be dry and free of corrosive substances to minimize the risk of degradation and electrical faults.
- Accessibility: Access to areas with bare conductors should be restricted to authorized personnel to reduce the risk of accidental contact.
In Conclusion:
While bare conductor rising mains offer certain advantages, their use is generally limited to specific industrial and power plant applications where safety measures can be strictly enforced. In most residential and commercial settings, insulated conductors are preferred due to their inherent safety and flexibility.
